Fire Stop Strip

Fire Stop solution to prevent passage of flames in narrow cavities

Key Facts:
  • Up to four hours fire integrity
  • Ideal for closing voids at the top of masonry walls
  • Suitable for both vertical and horizontal applications
  • Third-party certificated by IFC

Speak to an expert

Get in touch today to discuss your requirements and learn more about our Fire Stop Strip
Enquire Today
Description:

The ARC Fire Stop Strip is a fully tested IFC certificated fire stop purposely designed for narrow voids in masonry or concrete construction, it is suited to both low and high rise projects. The ARC Fire Stop Strip has been rigorously tested to meet or exceed the performance requirements laid out in UK and Irish Building Regulations, helping to ensure safer buildings. The Fire Stop Strip can be installed both vertically and horizontally.

Download Datasheet
View on NBS source
View Certificates
Key Stats
Key Stats LabelKey Stats Value
Length supplied 1.2m
Third party certification IFC certificate number: IFCC 1732
Insulation Non-combustible rockfibre mineral wool insulation
Thermal conductivity 0.035W/mK
Fire rating Up to four hours
Test standard EN1366-4
Cavity widths available Masonry
Orientation Horizontal or vertical
Mass Data available on request

Key Benefits

Third party certificated

Exceeds performance requirements

Horizontal & vertical applications

Easy installation

Application:

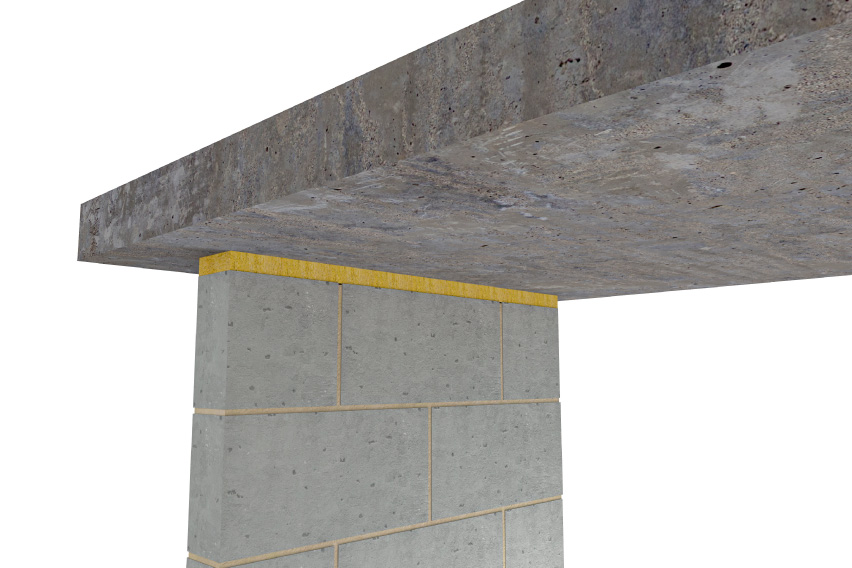

ARC Fire Stop Strip is designed to prevent the passage of flames through narrow voids in the construction, offering up to four hours fire integrity when installed between masonry or concrete. Possible applications include: top of masonry walls under the soffit, above partitions, expansion joints, and between ceilings and walls. The person installing the Fire Stop Strip should first familiarise themselves with the datasheet, ensuring the correct product is being fitted into the cavity.

All performance claims made are evidenced in the IFC certification IFCC 1732.

Test reports, third party certification and MSDS available on request

Would like to know more about our Fire Stop Strip?

Get in touch today to discuss your requirements and learn more about our Fire Stop Strip. Our dedicated team is ready to collaborate with you from the initial consultation through to project completion, ensuring every detail is handled with expertise and care.
Enquire Today
Installation instructions

ARC Fire Stop Strip is easily installed, simply push fitting into the void to create a friction fit. No adhesive or mastic is required, but care must be taken to ensure no gaps remain as these will compromise the fire integrity. Care should be taken when handling the product to ensure that the mineral wool isn’t damaged.

FAQ’s

What’s the maximum size you can manufacture the ARC fire stop strip for?

ARC Fire Stop Strip can be manufactured up to 50mm thickness and in widths from 100mm upwards.

Can the ARC Fire Stop Strip be used as a joint seal?

ARC Fire Stop Strip can be used to provide fire stopping for gaps in masonry/concrete constructions up to 50mm, provided there is a minimum 100mm depth.

Do you have further documentation for the ARC Fire Stop Strip?

For any information not found on the datasheet, please contact our technical team for support. Test reports, third party certification and the material data sheet are all available on request.
