Smart-Closer

Cavity closer for doors and windows with cavity sizes up to 300m

Key Facts:
  • Closes cavity around window and door reveals
  • Prevents cold bridging
  • Insulated with expanded polystyrene (EPS) as standard
  • For cavity widths from 50 to 150mm
  • Single flange available for check reveal details

Speak to an expert

Get in touch today to discuss your requirements and learn more about our Smart-Closer
Enquire Today
Description:

The ARC Smart-Closer is a purpose manufactured closer designed to minimise thermal bridging and tackle damp and mould around door and window openings. The Smart-Closer is quick and easy to install with the plastic profile acting as an integral DPC, avoiding the need for further DPC installation.

Download Datasheet
View on NBS source
Key Stats
Key Stats LabelKey Stats Value
Length supplied 2.4m
Thermal conductivity 0.038W/mK
Smart-Closer insulation Expanded Polystyrene (EPS)
Mass Data available on request

Key Benefits

Suitable for standard details

Tackles damp & mould

Excellent thermal properties

Application:

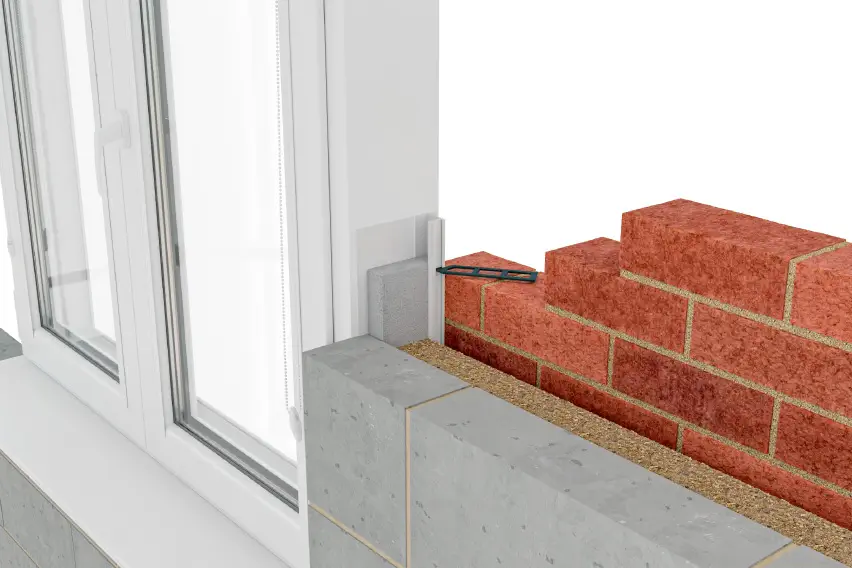

ARC Smart-Closer closes the cavity around window and door openings. The rigid PVCu profile is insulated with expanded polystyrene insulation (EPS). Smart-Closer helps prevent moisture, mould and staining from around windows and doors. The person installing the Smart-Closer should first familiarise themselves with the datasheet, ensuring the correct product is being fitted into the cavity.

Would like to know more about our Smart-Closer?

Get in touch today to discuss your requirements and learn more about our Smart-Closer. Our dedicated team is ready to collaborate with you from the initial consultation through to project completion, ensuring every detail is handled with expertise and care.
Enquire Today
Installation instructions

The ARC Smart-Closer is easily installed. Simply cut the jamb profile to the height of the window or door opening plus 75mm to allow the bottom edges to drop into the cavity below the sill. Once the jamb sections are installed, measure the required width for the sill section and cut a length to butt tightly to the jamb sections. If a longer length than 2.4m is required, see jointing method on the next page.

Option 1 (First Fix)

As above and build in the jamb sections as the brickwork progresses using ARC Brick Ties (1 every 225mm). Ties are not required on the sill section, simply hold in place with an adhesive or nail to block. ARC Brick Ties are sold separately.

Option 2 (Second Fix)

Cut sections to required size as above and simply push fit once the openings are formed. Sections can be secured by nailing to block or using a suitable adhesive.

FAQ’s

Do I have to install a separate DPC?

ARC Smart-Closer includes a plastic profile which acts as an integral DPC, eliminating the need to install a separate DPC.

Is the ARC Smart-Closer fire rated?

No, the ARC Smart-Closer is suitable for minimising cold bridging in applications where a fire rating is not required. If you require a fire rated cavity closer, please see the ARC Eco-Closer.

How do I join two lengths of the ARC Smart-Closer together?

Please follow the guidance on the product datasheet.

What is the ARC Smart-Closer insulated with?

The ARC Smart-Closer is insulated with expanded polystyrene (EPS).

Do you have further documentation for the ARC Rockfibre DPC?

For any information not found on the datasheet, please contact our technical team for support. Test reports, third party certification and the material data sheet are all available on request.

Related Products

Cold Bridging Product, Fire Product

Eco-Closer

ARC Eco-Closer closes the cavity around window and door openings in masonry walls, providing up to 60 minutes fire integrity.

View Details

Cold Bridging Product

Insulated DPC

ARC Insulated DPC is a thermal cavity closer designed to close the cavity around window and door reveals in conjunction with a return block, fitting between the return block and inner edge of the outer skin of brickwork.

View Details

Cold Bridging Product, Fire Product

Eco-Closer Plus

ARC Eco-Closer Plus closes wider cavities around window and door openings in masonry walls, providing up to one hour fire integrity.

View Details
