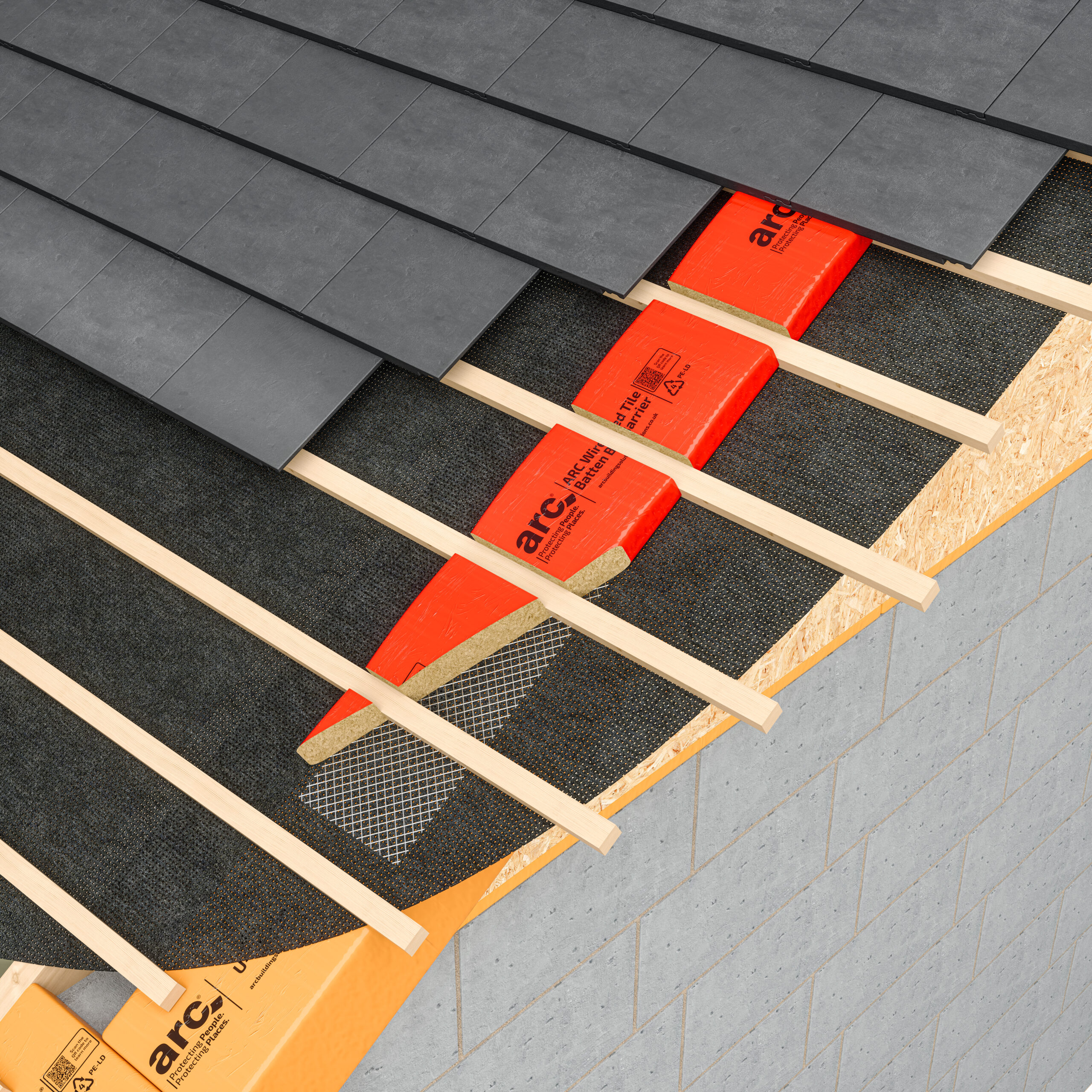

The ARC Wired Tile Batten Barrier is designed to provide a fire, thermal and acoustic break at the party wall between the roof tiles and roof membrane. It can be used in conjunction with the ARC Party Wall System to create a complete fire break at the separating wall between two dwellings. The person installing the Wired Tile Batten Barrier should first familiarise themselves with the datasheet, ensuring the correct product is being fitted into the cavity.
| Lengths | 1.25m |
| Insulation material | Rockfibre mineral wool insulation |
| Thermal conductivity | 0.040W/mK |
| Third party certification | IFC 1962 |
| Fire integrity | Up to 120 minutes |
| Insulation performance | Up to 120 minutes |
| Mass | Data available on request |
All performance claims made are evidenced in the IFC certification IFC 1962.
Test reports, third party certification and MSDS available on request.
Is this product fire rated?
Wired Tile Batten Barrier has been fire tested in accordance with the principles given in EN1366-4, achieving 120 minutes fire integrity and 120 minutes insulation within a masonry construction. Real world performance may be affected by the fire performance of supporting and abutting elements, for example the roof structure and membrane.
How does this product work with deeply ridged tiles?
Rock mineral wool is a flexible material and will fill most ridges. In extreme cases due to the natural properties of the material this may not happen. Any such gaps can be filled with cuts of non-combustible rockfibre mineral wool.
Does ARC Wired Tile Batten Barrier compress?
Yes, ARC Wired Tile Batten Barrier will compress underneath the tile.
