Fire Stop Slab

Versatile cavity fire barrier for multiple details in high-rise buildings

Key Facts:

The Fire Stop Slab features:

  • Up to four hours fire integrity
  • Suitable for horizontal or vertical applications
  • Cut to size on site or factory finished
  • Available to suit cavity widths up to 450mm
  • Third-party certificated by IFC
  • Suitable for several substrates including SFS, masonry and A2 sheathing board
  • Tested to EN1366-4 standards
  • Designed for use in external wall cavities at compartment wall & floor junctions
  • Ideal for common details at the floor slab where space is limited

Speak to an expert

Get in touch today to discuss your requirements and learn more about our Fire Stop Slab
Enquire Today
Description:

The ARC Fire Stop Slab is a fully tested IFC certificated fire barrier purposely designed for several details within high-rise construction which can be manufactured cut to spec or cut down on site. The ARC Fire Stop Slab has been rigorously tested to meet or exceed the performance requirements laid out in UK and Irish Building Regulations, helping to ensure safer buildings.

Download Datasheet
View Certificates
View on NBS source
Key Stats
Key Stats LabelKey Stats Value
Length supplied 1.2m
Third party certification IFC certificate number: IFCC 1731
Insulation Non-combustible rockfibre mineral wool
Thermal conductivity 0.035W/mK
Fire rating Up to four hours
Test standard EN1366-4
Cavity widths available Masonry & SFS
Orientation Horizontal or vertical

Key Benefits

Fire Product

Excellent thermal properties

Exceeds performance requirements

Third party certificated

Application:

ARC Fire Stop Slab provides up to four hours of fire integrity horizontally and vertically within external wall cavities. It is particularly well suited for use with medium and high-rise projects. The ARC Fire Stop Slab is manufactured from rockfibre mineral wool insulation with a class ‘O’ reinforced aluminium foil facing both sides. The person installing the Fire Stop Slab should first familiarise themselves with the datasheet, ensuring the correct product is being fitted into the cavity.

All performance claims made are evidenced in the IFC certification IFCC 1731.

Test reports, third party certification and MSDS available on request

Would like to know more about our Fire Stop Slab?

Get in touch today to discuss your requirements and learn more about our Fire Stop Slab. Our dedicated team is ready to collaborate with you from the initial consultation through to project completion, ensuring every detail is handled with expertise and care.
Enquire Today
Installation instructions

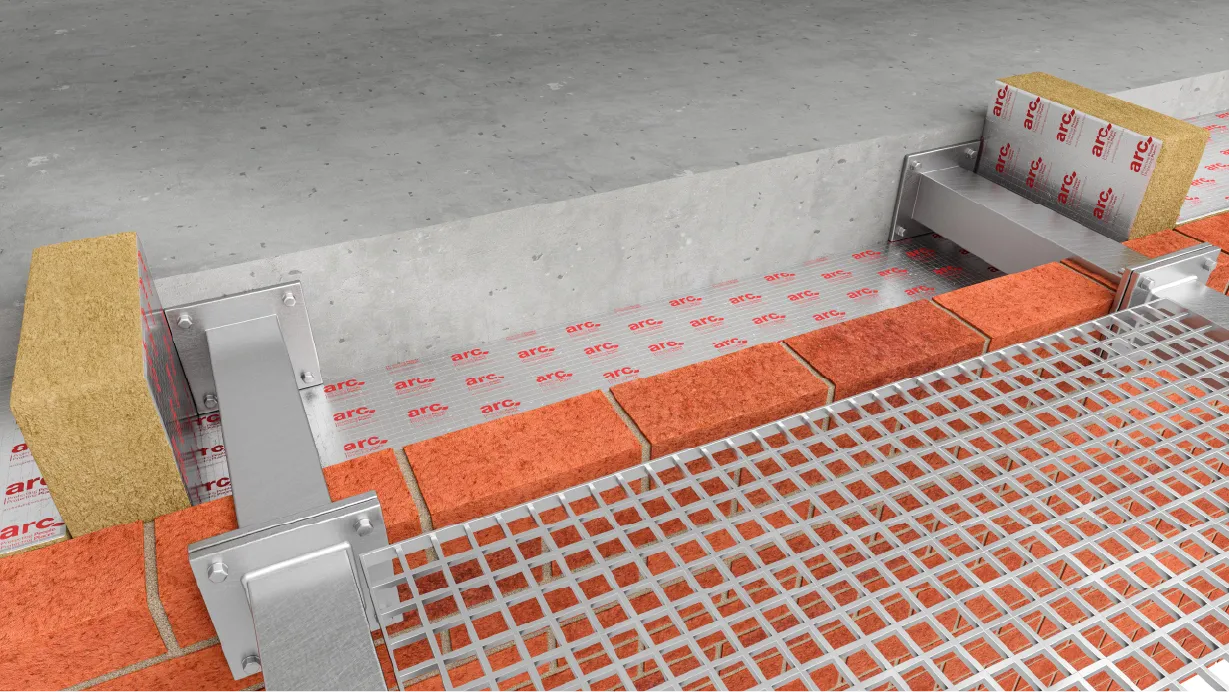

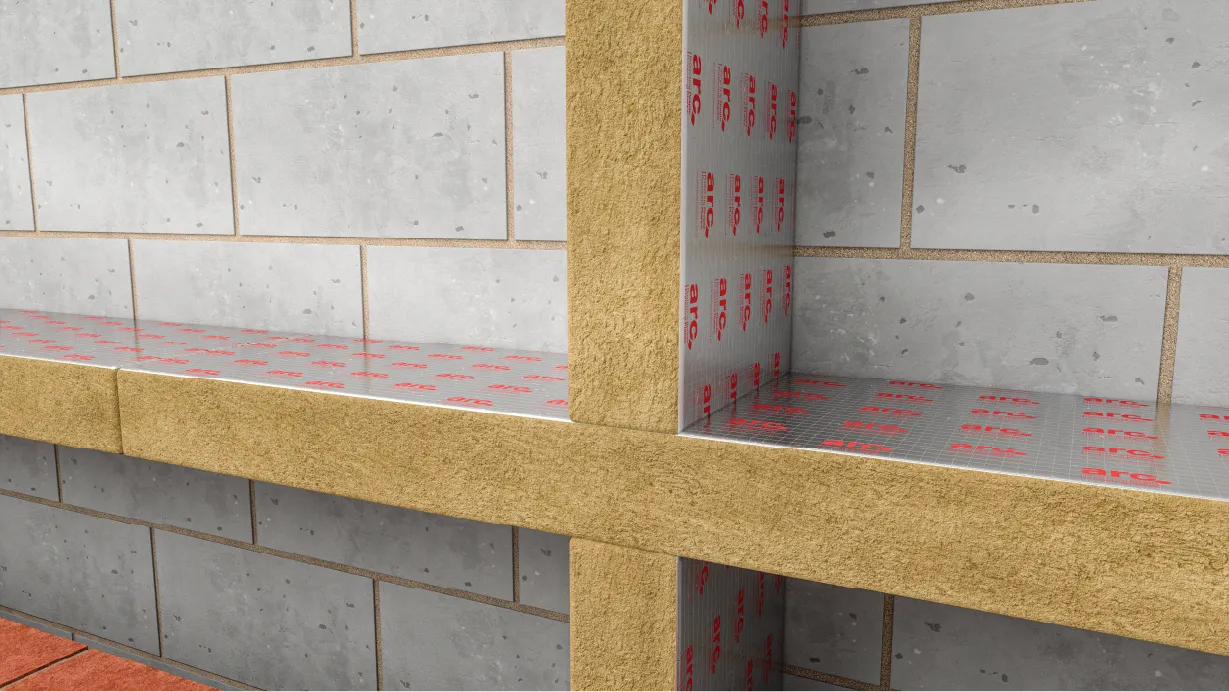

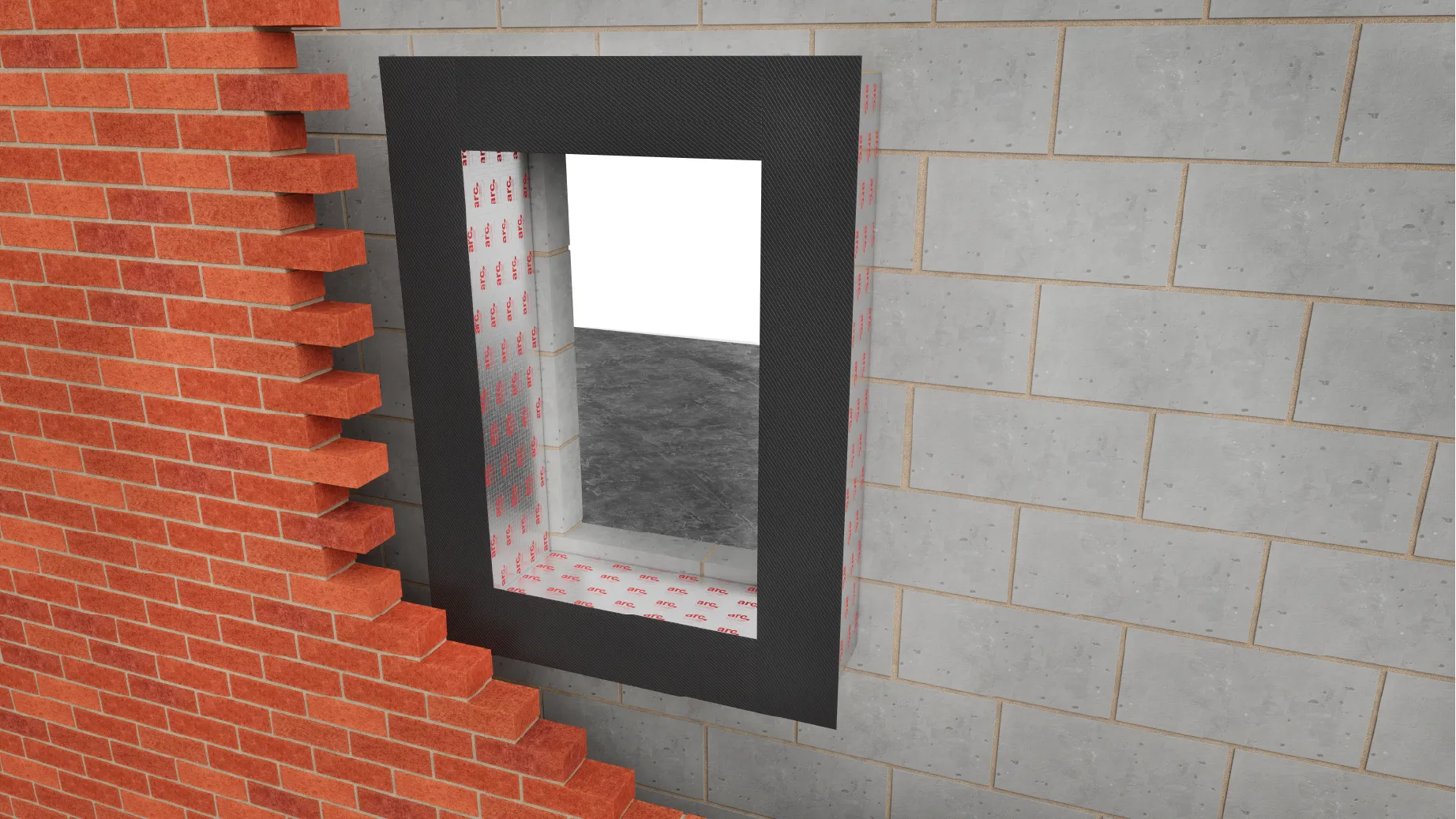

The ARC Fire Stop Slab is a versatile product that is suitable for use in a variety of applications which have been developed through collaboration with customers and industry partners. ARC Fire Stop Slab should be fitted into the cavity with lengths of barrier tightly butt jointed, with care taken to ensure there are no gaps. No tape or mastic is required to achieve the fire performance detailed below. When cutting barriers on-site from a full slab, it is important to ensure the cut size is suitable for the as-built cavity in accordance with the table below and selected application, as no gaps can remain between the barrier and the internal or external leaf

FAQ’s

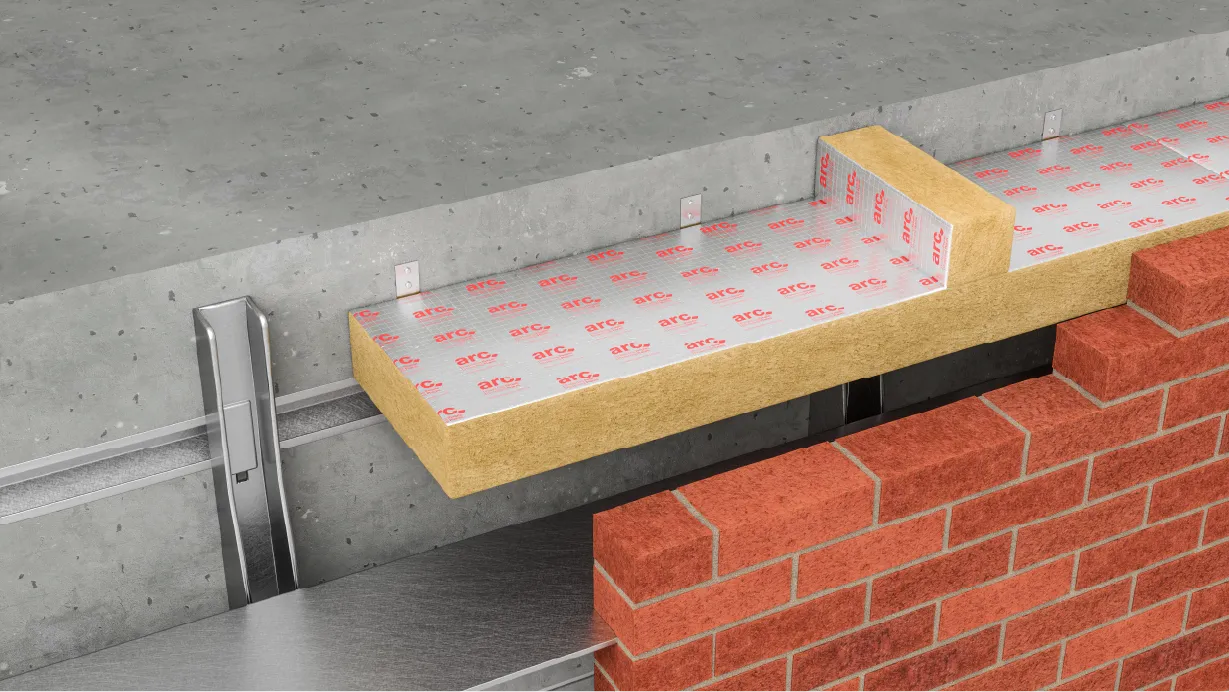

What should I use to fix the bracket to the substrate?

The fixing brackets should be mechanically fixed in to the edge of the concrete floor slab or into blockwork. A minimum 50mm masonry screw should be used.

Does the ARC Fire Stop Slab require compression?

A 5mm compression fit is recommended. When cutting on-site, it is important to ensure the cut size is suitable for the as-built cavity, as no gaps can remain between the barrier and the internal or external leaf.

Is the ARC Fire Stop Slab suitable SFS

Yes. ARC Fire Stop Slab has a range of supporting test evidence in accordance with BS EN 1366-4, and subsequently a FoA report has been written by independent fire engineers outlining the approved scope of use. This includes use against SFS and sheathing board.

Do you have further documentation for the ARC Fire Stop Slab?

For any information not found on the datasheet, please contact our technical team for support. Test reports, third party certification and the material data sheet are all available on request.
